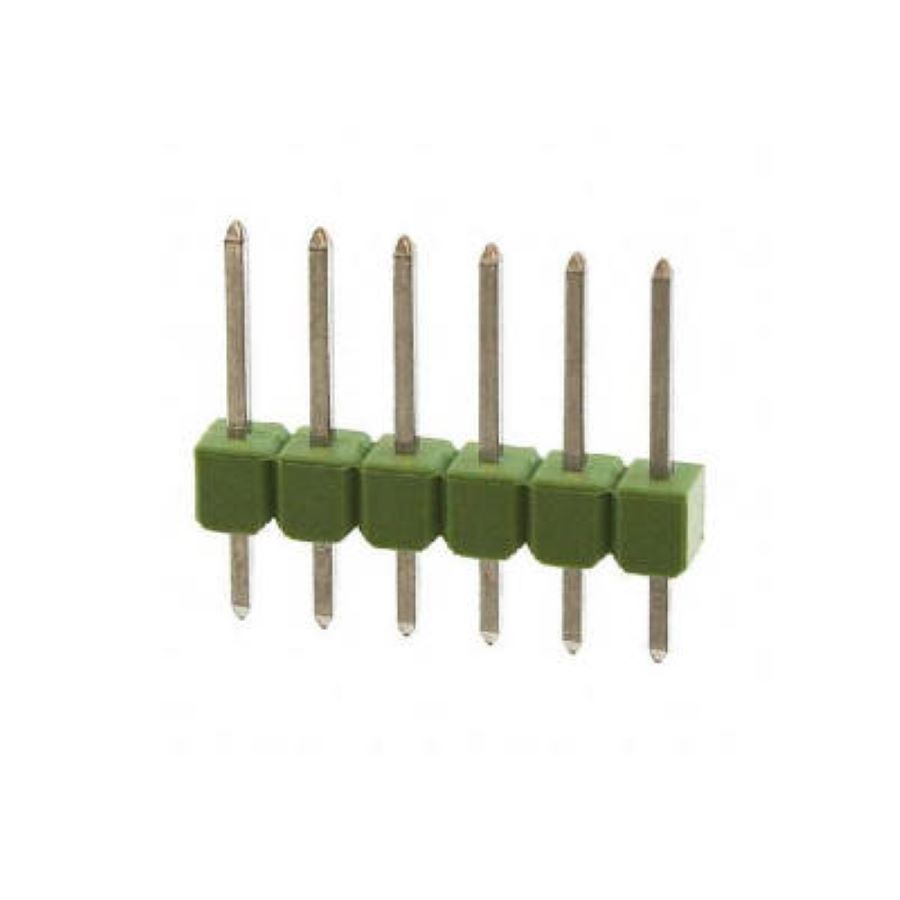

826926-6
Manufacturer:
TE Connectivity
Mfr.Part #:
826926-6
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 6 |
| Packaging | Box |
| Depth | 2.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Lead Length | 3.19786 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Gender | Male |
| Number of Contacts | 6 |
| ELV | Compliant |
| Number of Poles | 6 |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | PBT |
| Contact Style | Pin |
| Contact Current Rating | 5 A |
| Housing Color | Green |
| Contact Mating Length | 6.7056 mm |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| Plating Thickness | 2 µm |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 6.7 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Termination Post Length | 3.2 mm |
Stock: 491
Distributors
pcbx
pcbxUnit Price$0.28127
Ext.Price$0.28127
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28127 | $0.28127 |
| 10 | $0.23938 | $2.39380 |
| 25 | $0.22451 | $5.61275 |
| 50 | $0.21057 | $10.52850 |
| 100 | $0.19749 | $19.74900 |
| 300 | $0.18240 | $54.72000 |
| 500 | $0.16847 | $84.23500 |
| 1000 | $0.15560 | $155.60000 |
| 3000 | $0.14876 | $446.28000 |
